Huygens Restoration

Restore your microscope images with the Restoration tools in the Huygens Software



There are many different restoration methods that can be used to restore microscopy images. It depends on the image, which restoration method, or combination of methods, can be used for the best possible restoration. Below an overview is given on different image restoration methods that can be used for a variety of different use cases, that are available in the Huygens Software.


Nups CAC


Image Description:
Figure shows both a confocal (green) and STED (red) channel of the nuclear pore complex. The left image shows the deconvolved and chromatic aberration corrected image, the middle shows the deconvolved image before chromatic aberration correction and the right image shows the raw data. Before correction, a clear shift is visible between the confocal and the STED channel. Image courtesy: Leica Microsystems.


Deconvolution


A microscopy image is not an exact copy of the object under the microscope: a so-called convolution of the object light leads to blurring in the resulting image. The inverse process, deconvolution, reverses this blurring and brings the image closer to the actual object. The Huygens deconvolution options thus provides noise correction, deblurring, and increased resolution.

Learn more

smFISH in Drosophila Muscle shows mRNA composition of megaRNPs (yellow and red). Nuclei are stained with antilamin antibody (blue). Image by Dr. Akiko Noma, Dr. Carlas Smith & Dr. David Grunwald, University of Massachusetts Medical School, USA.



RAW Widefield
Huygens Deconvolved



Chromatic Abberation Correction


Chromatic aberration results in misalignment and other distortions between different channels in a microscope image. It can be caused by the physical properties of the used objectives, misalignment in the microscopy set-up, or by a combination of both. Nearly all multi-channel images show some degree of chromatic aberration. The Huygens Chromatic Aberration Corrector can estimate and corrects these aberrations.

Learn more

Image description
Chromatic aberration correction reveals colocalization between labeled Mis12 (green) and Aurora B kinase (red) in a U2OS cell. Data from Dr. Livio Kleij en Martijn Vroomans, UMC Utrecht, The Netherlands.



ChromAb U2OS


Crosstalk Correction


Crosstalk (a.k.a. optical crosstalk, bleed-through or crossover) is a phenomenon in multi-channel microscopy where signal from one dye is collected as signal from another dye, i.e., signal seems to come from one dye when it really comes from another. The Huygens Crosstalk Corrector can quickly estimate and correct crosstalk between multiple channels simultaneously.

Learn more

Image description
Mitochondrial (TMRM) red signal is also detected as signal in the green Lipid Droplet (BODIPY) channel due to crosstalk. This crosstalk will have a serious impact on the analysis of lipid droplet structure. Both channels are shown in the upper part; only the green channel is shown in the lower part. The spinning disk image was corrected with Huygens Crosstalk Corrector (right). Courtesy of Kevin Knoops (Microscopy CORE Lab), Sabine Daemen and Matthijs Hesselink, Maastricht University, The Netherlands.



Before
Crosstalk corrected



Hot & Cold Pixel Removal


Hot pixels and cold pixels are produced by individual sensors on the CCD camera with higher than normal rates of charge leakage or lower than normal sensitivity. Hot and Cold pixels appear in the image as bright and dark pixels, respectively. They can be effectively corrected with the Huygens Hot & Cold Pixel Remover.

Learn more

Image description
''Widefield microscopy image with hot pixels. Image shows the removal of the hot pixels with the Huygens Hot & Cold Pixel Remover. Courtesy of Dr. Rebecca Lee and Genevieve Phillips, Fluorescence Microscopy Shared Resource, University of
New Mexico School of Medicine, Albuquerque, USA.''



Hot Pixels removed
Before



Object stabilization

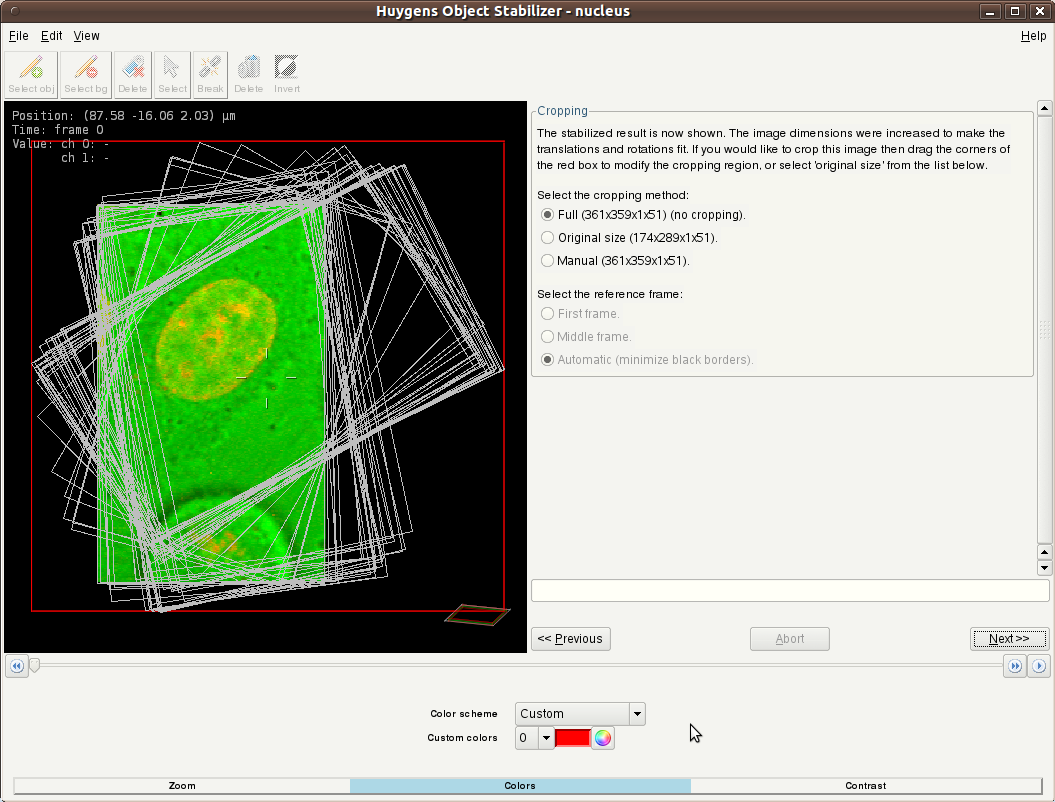

Object stabilization is needed in cases of undesired sample movement, caused by for example stage drift or vibration or simply by the motility of a cell or organism. The Huygens Object Stabilizer can measure and correct this movement by stabilizing 2D and 3D time series, movement in xyz, axial rotation and mis-alignment of slices within a 3D stack. Both the measurement and the subsequent stabilization are done in 3D and at sub-pixel level.

Learn more

Persistent drift and a stage bump during acquisition complicate tracking of the red lysosomes/endosomes (left). Both issues were corrected with Huygens Object Stabilizer (right). This widefield time series of a mouse embryonic fibroblast (MEF) is courtesy of Prof. Fumio Matsumura, Rutgers University, USA.



Stabilized
Not Stabilized



Image Stitching and Vignetting Correction


Many images suffer from uneven illumination of the field, with poorer illumination at the image periphery. This so-called vignetting problem is due to factors in the microscope light path, such as limitation in the lenses or in the camera. The vignetting effect becomes particularly evident when 2D or 3D tile images are stitched together. The Huygens Stitcher can correct for vignetting and create an uniform reconstruction of the large field of view.

Learn more

Image description
Widefield (Leica) fluorescent Leica LIF data were stitched with the Huygens Stitcher. The same data is shown with and without Huygens automatic vignetting and shading correction. Image represents a developing mouse cortex (P30) stained for Tbr1 and reelin.



No Vignetting Correction
Auto Vignetting correction



Light Sheet image Fusion


Common in Light Sheet Fluorescence Microscopy (LSFM) is the acquistion of multiple (opposing or rotational) views, and fuse these to compensate for light absorption and scattering issues. Typically, interest points (e.g. beads) are included to facilitate this fusion process. Huygens Fuser does not require the use of beads. Instead, each view can be optimally positioned by shifting, rotating, and scaling it using the interactive scene. Advanced correlation algorithms then fine-tune the alignment. Real-time visual feedback during the alignment process gives you full control over the fusion!

Learn more

Image description
Multiview 3D light sheet data, fused, deconvolved and visualized with Huygens, shows stained Arabidopsis thaliana mature anther. Note the more homogenous intensity in the fused and deconvolved result. Scale bar: 30 μm. Courtesy of Ioannis Alexopoulos (GI), Ivo Rieu, Mieke Wolters and Jian Xu, Radboud University, The Netherlands.



Fuser Ioannis


Bleaching Effects Correction


Bleaching Effects are practically unavoidable phenomena in fluorescence microscopy. Because the image planes are acquired sequentially, bleaching will vary along the Z direction and/or over time. Assuming it is not strong it will not affect deconvolution results of confocal images. But in widefield microscopy deconvolution bleaching is more of a problem. Fortunately, the bleaching in most of WF images can be corrected quite easily. Huygens will do so automatically. If the bleaching is too severe, the correction might not be perfect resulting in lower quality deconvolution results. From Huygens version 17.04 onwards, there is a new Bleaching Corrector tool available.

Learn more



Window2



Image restoration with Huygens

1. Raw image

Huygens is able to restore a wide variety of imaging artifacts. Besides the noise, blur and background - present in all fluorescent microscopy data, this specific raw Re-scan confocal example of TOMM20 mitochondrial staining also suffers from several hot pixels (see arrowheads in first image) and crosstalk (as indicated by the arrow in second image). The first image shows the raw Re-scan image with all the above-mentioned artifacts, which are one-by-one addressed in the images that follow. The first restoration step involves the successful removal of hot pixels using Huygens Hot & Cold Pixel Remover.

2. Hot & Cold Pixels Remover

This second image shows the effective correction of all hot pixels (see arrowheads in previous image). There is however still crosstalk, which can be seen in this TOMM20 channel (red) as bleedthrough of signal originating from the microtubular staining (see green channel in figure at the top of this page). This crosstalk seriously poses a problem when performing multi-channel analyses like colocalization or object-based analysis. With Huygens CrossTalk Corrector you can easily and quickly estimate, and correct crosstalk between many channels simultaneously.

3. Crosstalk Corrector

In this third image the crosstalk has been corrected. The image was further restored with Huygens specific Re-scan deconvolution option. Deconvolution is a mathematical operation used in image restoration to recover an image that is degraded by a physical process which can be described by the opposite operation, a convolution. Huygens renowned deconvolution with its advanced MLE algorithms involves the effective correction of background, blur and noise, typically leading to significant increase in resolution and signal (contrast).

4. Deconvolved

Lastly, this fourth image shows the completely Huygens restored Re-scan confocal microscopy image of the TOMM20 channel from the image that is also shown at the top of this page.

Image Description
Click on image to zoom and enlarge. Image showing three restoration steps with tools available in the Huygens Software of a re-scan confocal image of TOMM20 protein (Alexa 568-labelling). Image courtesy: Dr. Tobias Schwarz, ScopeM, ETH Zurich, Switzerland
